Packaging Standard for:
LEVER, TELESCOPING UNCOUPLING
Number: LEV-2
Dimensions (inches)
Height: 23 Width: 63 Length: 70
Height: 23 Width: 63 Length: 70
Std. Qty. 50
Gross Weight (LBS): 1850
Date: 6/2016
Revision:
Description:

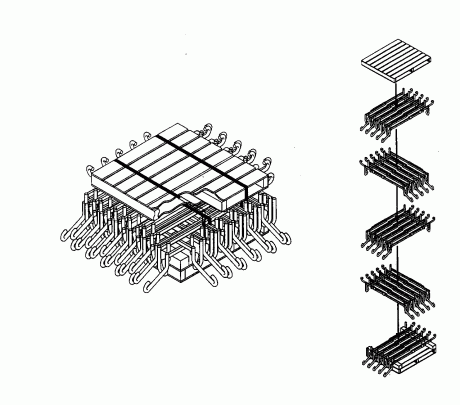

To be packaged as a unitized bundle, up to 5 layers, sandwiched between 2 pallets. The levers are to be placed on a 48″ x 48″ pallet in crisscrossed rows, ten levers to a row. They are to be banded to the pallet with two 1.25″ non-metallic bands. One 48″ x 48″ pallet is to be placed on the top layer of levers and is to be banded to the base pallet with two 1.25″ non-metallic bands for a total of four bands.
Use of the top pallet and two 4″ x 4″ x 48″ softwood risers is specified for order quantities which require two or more rows. For smaller quantities, the base pallet alone is sufficient.
Base pallet: PAL-6 Top pallet: PAL-3 or PAL-6
