Packaging Standards

Packaging Standard for:

HOSE, <= 30″ AIR BRAKE

Number: HOS-1
Dimensions (inches)
Height: 24  Width: 36  Length: 36
Std. Qty. 200
Gross Weight (LBS): 1250
Date: 6/2016
Revision:

Description:

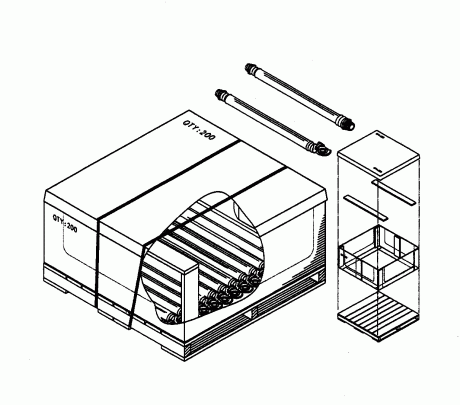

Lay up to 200 air brake hoses in the same direction in a crate. Secure the lid to the crate with two non-metallic .4375″ bands.
The use of protective caps to seal the air chambers from foreign materials and to protect nipple threads from damage in shipment or distribution is required.
Pallet: PAL-12 Crate: CRA-6
