Packaging Standard for:
HEAD, MODEL ACF 6-2 HITCH
Number: HEA-2
Dimensions (inches)
Height: 36 Width: 40 Length: 48
Height: 36 Width: 40 Length: 48
Std. Qty. 10
Gross Weight (LBS): 3600
Date: 6/2016
Revision:
Description:

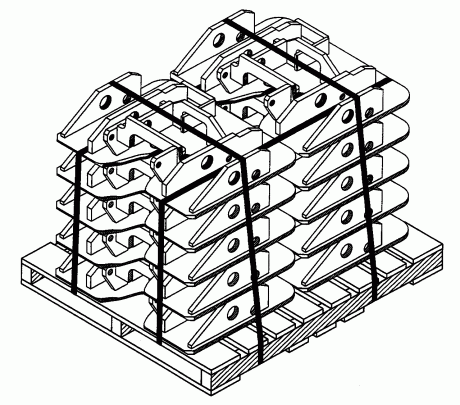

Place up to ten hitch heads face down in two stacks of five heads each on a 40″ x 48″ pallet. Some heads may need to be further stabilized by placing up to two 4″ x 4″ wooden blocks and possibly a 2″ x 4″ board between each of the first four heads in the package (total of 8 blocks and/or 4 boards). The pieces are attached to the pallet with two 1.25″ non-metallic bands across both stacks and one 1.25″ non-metallic band placed perpendicular to the first two per sack, for a package total of four non-metallic bands.
Pallet: PAL-1
