Packaging Standard for:
CASTING, STUCKI RFE-41 FRICTION
Number: CAS-13
Dimensions (inches)
Height: 24 Width: 48 Length: 48
Height: 24 Width: 48 Length: 48
Std. Qty. 216
Gross Weight (LBS): 3750
Date: 6/2016
Revision:
Description:

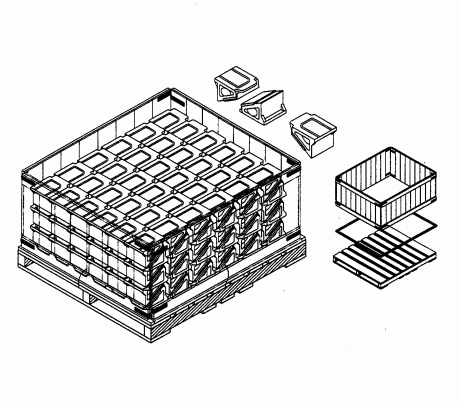

The castings are to be placed in a 48″ x 48″ crate and pallet in 6 alternating layers (three layers face up and three layers face down) in a 6 x 6 nested configuration for a total of 36 castings per layer and 216 per package.
Pallet: PAL-3 Crate: CRA-3 or equivalent
