Packaging Standard for:
CASTING, NATIONAL WEDGELOCK FRICTION
Number: CAS-8
Dimensions (inches)
Height: 24 Width: 40 Length: 48
Height: 24 Width: 40 Length: 48
Std. Qty. 162
Gross Weight (LBS): 3200
Date: 6/2016
Revision:
Description:

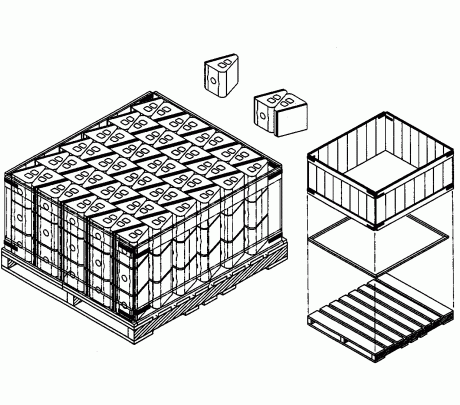

The castings are to be placed on their sides in an alternating fashion in a 40″ x 48″ crate and pallet. Each of three layers contains six rows of 9 pieces per row for a total of 54 castings per layer and 162 per package.
Pallet PAL-1 Crate: CRA-1 or equivalent
