Packaging Standards

Packaging Standard for:


Number: CAG-3
Dimensions (inches)
Height: 24  Width: 48  Length: 48
Std. Qty. 124
Gross Weight (LBS): 1750
Date: 6/2016

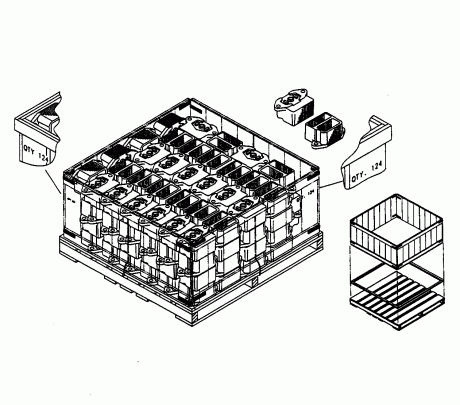

Alternate a row of 6 side bearing cages placed down with 6 placed up and adjacent to it creating 4 rows of 24 total cages. Place 4 additional cages along the perimeter and perpendicular to the first four rows alternating one up and one down. Finally, place 4 cages on their sides along the adjoining edge of the crate in alternating fashion. The package consists of 4 layers of 28 pieces per layer with 12 additional pieces placed on their sides for a total of 124 cages per package.
Depending upon the size of each piece and the quantity ordered, a lower crate than the one specified may be appropriate.
Pallet: PAL-3 Crate: CRA-3 or equivalent
