Packaging Standard for:
CAGE, LONG SIDE BEARING
Number: CAG-4
Dimensions (inches)
Height: 24 Width: 40 Length: 48
Height: 24 Width: 40 Length: 48
Std. Qty. 180
Gross Weight (LBS): 4100
Date: 6/2016
Revision:
Description:

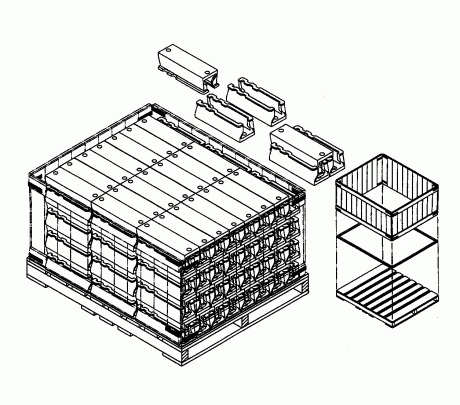

Place twenty-four side bearing cages up and interlock them by placing twenty-one down in an alternating fashion. Each of four layers will consist of three sets of 15 interlocked pieces for a total of 45 cages per layer and 180 pieces per package. Depending upon the size of each piece and the quantity ordered, a lower crate than the one specified may be appropriate.
Pallet: PAL-1 Crate: CRA-1 or equivalent
