Packaging Standards

Packaging Standard for:

BOARD, SHORT LENGTH RUNNING <=48"

Number: BOA-1
Dimensions (inches)
Height: Varies  Width: 40, 42, 48  Length: 48
Std. Qty. Varies
Gross Weight (LBS): Varies
Date: 6/2016
Revision:

Description:

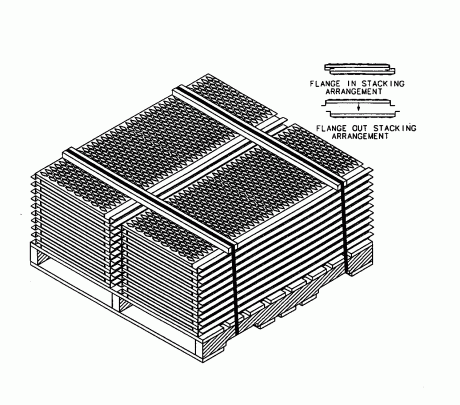

Stack running boards (longest ones first) on the pallet in interlocking, alternating fashion (first one down, second one up, etc.) not to extend beyond the pallet dimension. Two 1″ x 2″ x (v) various boards are placed across the running boards and two .75″ non-metallic bands are used to secure them to a four-way 40″, 42″, or 48″ x 48″ pallet.
Pallet: PAL-4, PAL-5, or PAL-6
