Packaging Standards

Packaging Standard for:

ASSEMBLY, EMD POWER

Number: ASY-30, SHT.2
Dimensions (inches)
Height: 50.375  Width: 35.5  Length: 32.75
Std. Qty. 4
Gross Weight (LBS): 2500
Date: 6/2016
Revision:

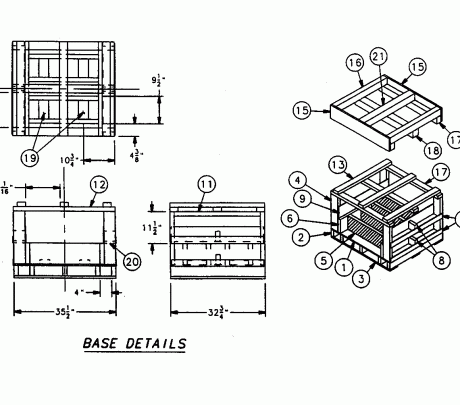

Description:

7. Base, .25″ x CDX 2.25″ x 31.875″
8. Base, 1.5″ x 3.5″ x 4″ Qty. 4
9. Base, .25″ CDX 5.875″ x 31.875″ Qty. 2
10. Intentionally left blank Qty. N/A
11. Base, 1.5″ x 3.5″ x 29.75″ Qty. 2
12. Base, 1.5″ x 2.875″ x 35.5″ Qty. 3
13. Base, 1.5″ x 2.875″ x 32.75″ Qty. 5
14. Intentionally left blank Qty. N/A
15. Top, .75″ x 7.25″ x 35.5″ Qty. 2
16. Top, 2.5″ x 3.5″ x 31.25″ Qty. 2
17. Top, 2.5″ x 3.5″ x 35.5″ Qty. 2
18. Top, 3.5″ x 3.5″ x 35.5″ Qty. 1
19. Base, 1.5″ x 3.5″ x 6.5″ Qty. 4
20. Base, .75″ x 3.5″ x 29.75″ Qty. 2
21. Top, 3.5″ x 3.5″ x 31.25″ Qty. 1
Container: Special
